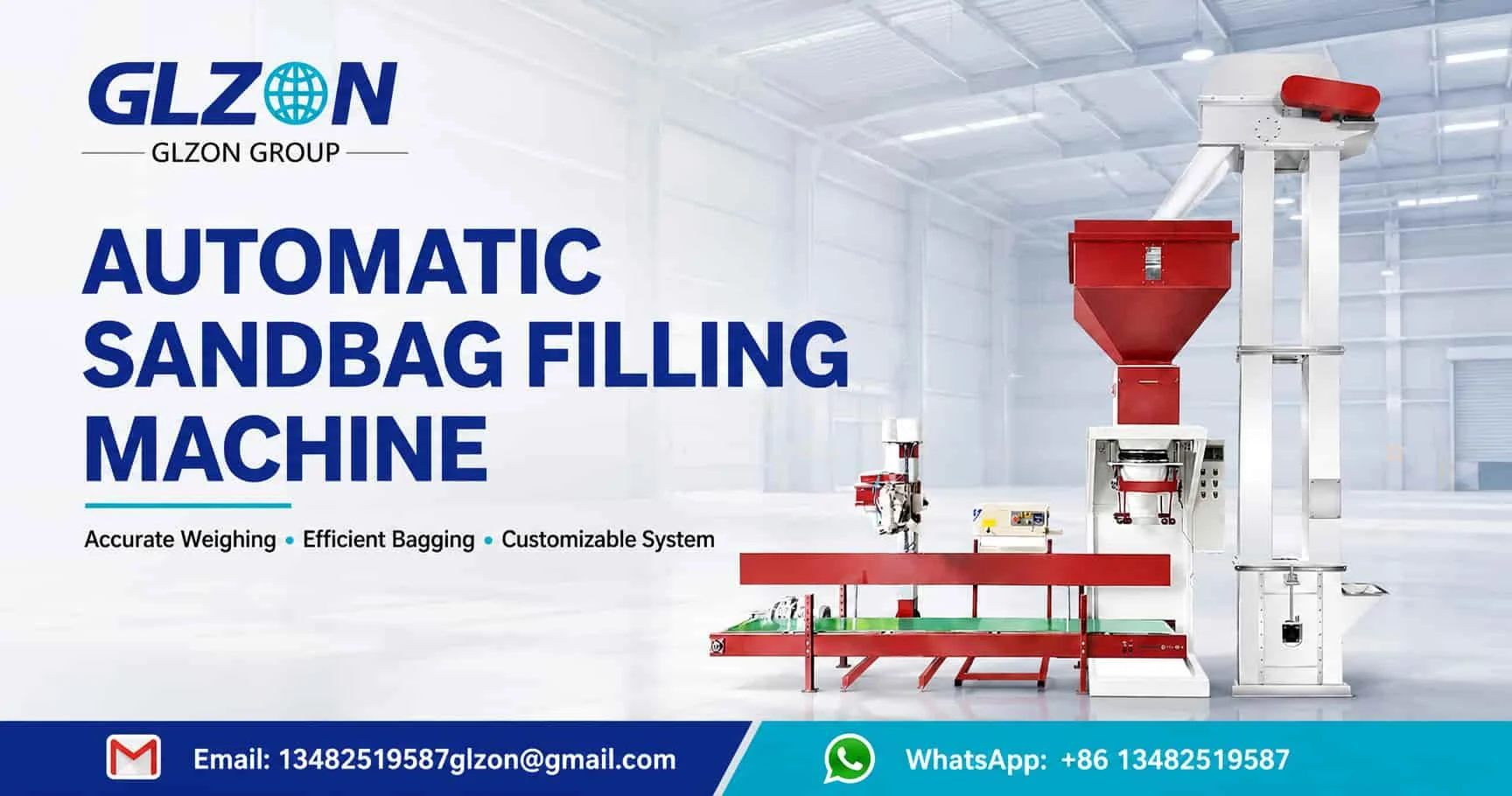

Industrial Sandbag Machine for Fast and Accurate Bag Filling
GLZON supplies industrial sandbag machines designed to fill and pack sand, gravel and other free-flowing granular materials efficiently. Our equipment provides a practical alternative to slow and labor-intensive manual sandbag filling.
The machine can automatically measure the required quantity of material and discharge it into an open-mouth bag. Depending on the selected configuration, the production line can include material feeding, weighing, bag clamping, filling, conveying and bag sealing or sewing.
Our sandbag filling equipment can be customized according to your material, bag size, required capacity, available factory space and local electrical standard.
Contact GLZON to receive a customized sandbag filling solution from Shanghai, China.
What Is a Sandbag Machine?
A sandbag machine is industrial equipment used to measure and fill sand into bags. It improves production efficiency, maintains a more consistent filling weight and reduces the amount of manual handling required during the packing process.
A typical sandbag filling machine consists of:
- Material feeding system
- Storage or buffer hopper
- Electronic weighing system
- Bag-clamping mechanism
- Filling outlet
- Control panel
- Bag conveyor
- Bag sewing or heat-sealing unit
Operators place empty bags under the filling outlet. The machine clamps the bag, measures the material and discharges the preset quantity. The filled bag is then released onto a conveyor for closing.
The final configuration depends on the characteristics of the material and the type of bag being used.
Sandbag Filling Machine Applications
Our sand bag packing machines can be configured for different industries and applications, including:
- Flood-control sandbags
- Construction sand
- Dry sand
- Fine gravel
- Decorative stone
- Free-flowing minerals
- Fertilizer granules
- Plastic pellets
- Animal feed
- Rice and grain
- Corn and seeds
- Other granular products
The machine is suitable for companies that need to pack a consistent quantity of free-flowing material into open-mouth bags.
Materials containing excessive moisture, large stones or poor-flowing particles may require a specially designed feeder, hopper agitator or anti-blocking system. GLZON evaluates the material before recommending the appropriate configuration.
Automatic Sandbag Filling Machine
An automatic sandbag filling machine combines material feeding, electronic weighing and controlled discharge in one system. Compared with manual filling, it can improve weight consistency and reduce material loss.
A complete automatic sand bagging machine may include:
- Material loading into a storage hopper
- Controlled feeding into the weighing system
- Automatic weighing to the preset target
- Pneumatic bag clamping
- Material discharge into the bag
- Automatic bag release
- Conveyor transportation
- Bag sewing or sealing
Automatic configurations are suitable for factories, construction-material suppliers, flood-control suppliers and packing facilities with regular or high-volume production requirements.
Key Features of Our Sandbag Filling Equipment
Accurate Electronic Weighing
The machine uses a load-cell weighing system to monitor the filling quantity. Coarse and fine feeding stages can be configured to balance operating speed with filling accuracy.
Adjustable Filling Weight
Operators can set the required bag weight through the control panel. The practical filling range depends on the machine model, feeder design and material properties.
Secure Bag Clamping
The pneumatic clamping mechanism holds the bag under the filling outlet and helps reduce dust and material leakage during discharge.
Industrial Control System
A PLC and touchscreen can be supplied for convenient operation. Operators can set filling parameters, monitor production and adjust the machine for different materials or bag sizes.
Dust-Control Options
A dust-collection connection, enclosed filling outlet or dust hood can be added for dusty materials such as dry sand, cement and mineral powder.
Customizable Feeding System
Different materials require different feeding methods. Available solutions may include:
- Gravity feeding
- Belt feeding
- Screw feeding
- Vibratory feeding
The correct feeder is selected according to particle size, bulk density, flow characteristics and required output.
Easy Integration
The sandbag machine can be connected to an existing hopper, silo, conveyor or material-handling system. A complete line can also be supplied with bag sewing and finished-bag conveying equipment.
Available Machine Configurations
Semi-Automatic Sandbag Filling Machine
A semi-automatic machine requires an operator to position each empty bag under the filling outlet and start the filling cycle. The machine completes the weighing and filling process.
This option is suitable for:
- Small and medium production requirements
- Projects with several bag sizes
- Companies seeking a lower initial investment
- Operations where manual bag placement is acceptable
Automatic Sand Bagging Machine
An automatic configuration can reduce manual handling by adding automatic bag feeding, bag positioning, filling, closing and conveying systems.
This option is suitable for:
- Continuous production
- Higher output requirements
- Standardized bag sizes
- Factories seeking greater automation
Mobile Sandbag Filling Equipment
A mobile configuration can be mounted on a movable frame or integrated with a portable feeding system. It can be useful for temporary construction sites, emergency flood-control preparation and operations that need to move the equipment between locations.
The final mobile design should be confirmed according to the required output, material-loading method and site conditions.
Open-Mouth Bag Filling Machine for Sand and Granules
Most standard sandbags are open-mouth bags. For this reason, an open-mouth bag filling machine is commonly used for sandbag production.
The operator places the bag over the filling outlet, and the bag clamp holds it in position. After the target weight is reached, the machine releases the bag onto a conveyor.
The closing method can be selected according to the bag material:
- Sewing for woven polypropylene bags
- Heat sealing for suitable plastic bags
- Sewing with crepe-paper tape
- Manual tying for special applications
- Combined inner-liner sealing and outer-bag sewing
GLZON can recommend a compatible closing system after confirming the bag material, dimensions and opening style.
Sandbag Machine Technical Specifications
The following specifications should be customized for your actual project:
| Item | Available Configuration |
|---|---|
| Machine type | Semi-automatic or automatic |
| Suitable material | Sand and free-flowing granules |
| Bag type | Open-mouth bags |
| Filling range | Customized |
| Production capacity | Customized according to material and bag weight |
| Weighing system | Electronic load-cell weighing |
| Feeding method | Gravity, belt, screw or vibration feeder |
| Bag clamping | Pneumatic |
| Control system | PLC with touchscreen option |
| Machine material | Carbon steel or stainless-steel contact parts |
| Bag closing | Sewing, heat sealing or customized |
| Power supply | Customized for the destination country |
| Dust collection | Optional |
| Conveyor | Optional |
| Installation | Stand-alone machine or complete packing line |
Actual capacity and accuracy depend on the material, target weight, feeder type, bag dimensions and site conditions.
Benefits of Using a Sandbag Filling Machine
Improved Production Efficiency
Automating the weighing and filling process enables operators to prepare sandbags more efficiently than traditional manual filling.
More Consistent Bag Weight
Electronic weighing helps control the quantity placed in every bag. This is important for commercial packaging, inventory control and transportation planning.
Reduced Labor Requirements
The machine performs repetitive material measurement and discharge. Operators can focus on bag placement, closing and palletizing.
Cleaner Working Area
A controlled filling outlet, secure bag clamp and optional dust-collection system can reduce material spillage and airborne dust.
Flexible Production
The filling parameters can be adjusted for different target weights, provided that the bags and materials remain within the machine’s specified operating range.
Expandable Packing Line
Customers can begin with a stand-alone sand bag filler machine and later add conveyors, sewing equipment, automatic bag feeding or palletizing systems.
Sandbag Machine for Sale from GLZON
GLZON manufactures filling and packing machinery in Shanghai, China. We provide individual machines and customized production lines for powder, granule and liquid applications.
When you purchase a sandbag filling machine from GLZON, we can provide:
- Machine configuration based on your material
- Customized filling range and capacity
- Electrical components for your local power supply
- English-language operating documents
- Installation and commissioning guidance
- Operator training support
- Spare-parts recommendations
- Technical after-sales assistance
Before production, our team confirms the material, bag type, target weight and operating conditions to reduce the risk of selecting an unsuitable feeding or weighing system.
Information Required for a Quotation
Please provide the following details so that we can recommend the correct machine:
- What material do you need to fill?
- Is the material dry or wet?
- What is its approximate particle size?
- What is the required weight per bag?
- What are the bag dimensions and material?
- How many bags do you need to fill per hour?
- How will material be supplied to the machine?
- Do you require bag sewing or heat sealing?
- Do you require a conveyor or palletizing system?
- What is the destination country and electrical standard?
Material photos, bag photos and a short operating video can help us prepare a more accurate technical proposal.
Frequently Asked Questions
How does a sandbag filling machine work?
The machine feeds sand into a weighing hopper or directly into a bag while monitoring the weight. When the preset quantity is reached, material feeding stops, and the filled bag is released for closing and transportation.
What materials can the machine pack?
The machine can pack dry sand, gravel and many free-flowing granules. A technical evaluation is necessary for wet, sticky, dusty or poorly flowing materials.
Can the sandbag machine fill different bag weights?
Yes. The target weight can be adjusted within the machine’s designed filling range. A very large difference between minimum and maximum bag weights may require additional configuration.
Is it a fully automatic machine?
Both semi-automatic and fully automatic configurations are available. In a semi-automatic system, an operator usually places the empty bag. An automatic line can add automatic bag feeding, bag closing and conveying.
Can you add a bag-sewing machine?
Yes. A sewing machine and conveyor can be integrated for woven polypropylene, paper and other sewable open-mouth bags.
Can the machine pack cement or dry mortar?
A specially configured machine can pack cement, dry mortar and similar powder products. These materials normally require a powder-compatible feeder, dust-control system and suitable bag design. A standard sand feeder should not be used without technical evaluation.
What is the production capacity?
Production capacity depends on the target bag weight, material flow, feeding system, automation level and operator speed. Send us your required number of bags per hour so we can select the appropriate model.
Can the machine be customized?
Yes. The filling range, feeder, hopper, contact materials, control system, conveyor, closing equipment and electrical components can be customized.
